6- Pairing CGM ( Linx or AiDEX X )

Learn everything you need to know about using Equil® in 6 simple, guided modules — from setup to everyday use.

Equil® Academy – Master Your Pump with Confidence

Pairing Your CGM

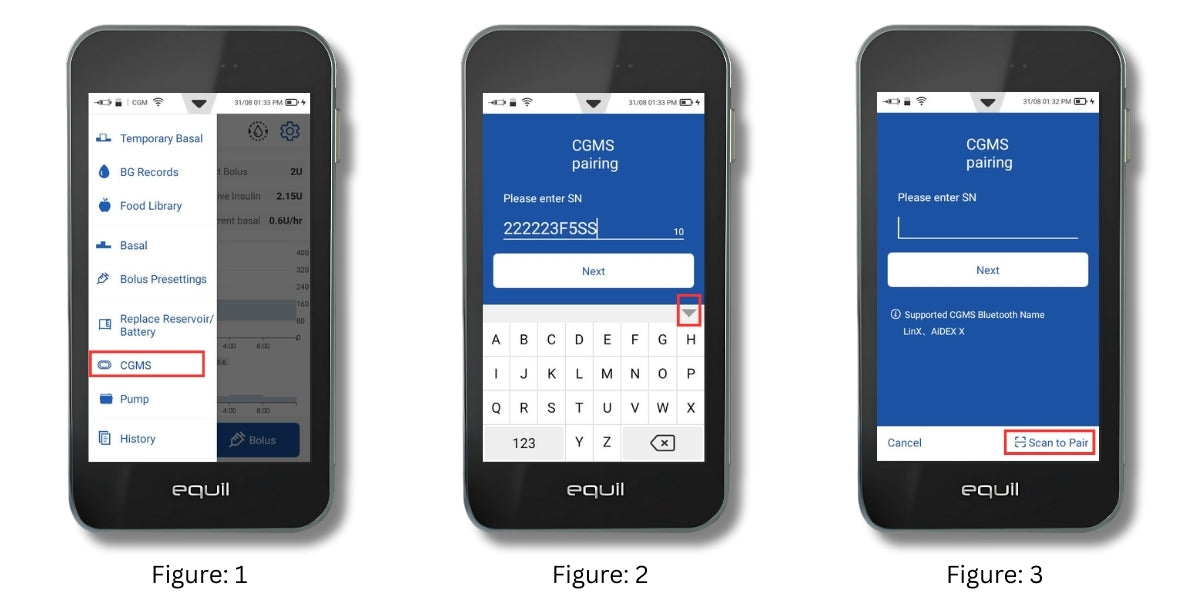

From the Home screen, select the Main Menu, then choose CGM as shown in Figure 1. This will open the pairing options for your sensor.

Once you are in the CGM menu, you have two ways to pair your sensor:

Option A: Manually type the sensor serial number as shown in Figure 2, then click Next to begin pairing.
Option B: Click on the keyboard arrow (see Figure 2). This will bring up another button called Scan to Pair, as shown in Figure 3. Selecting this option activates your device camera.

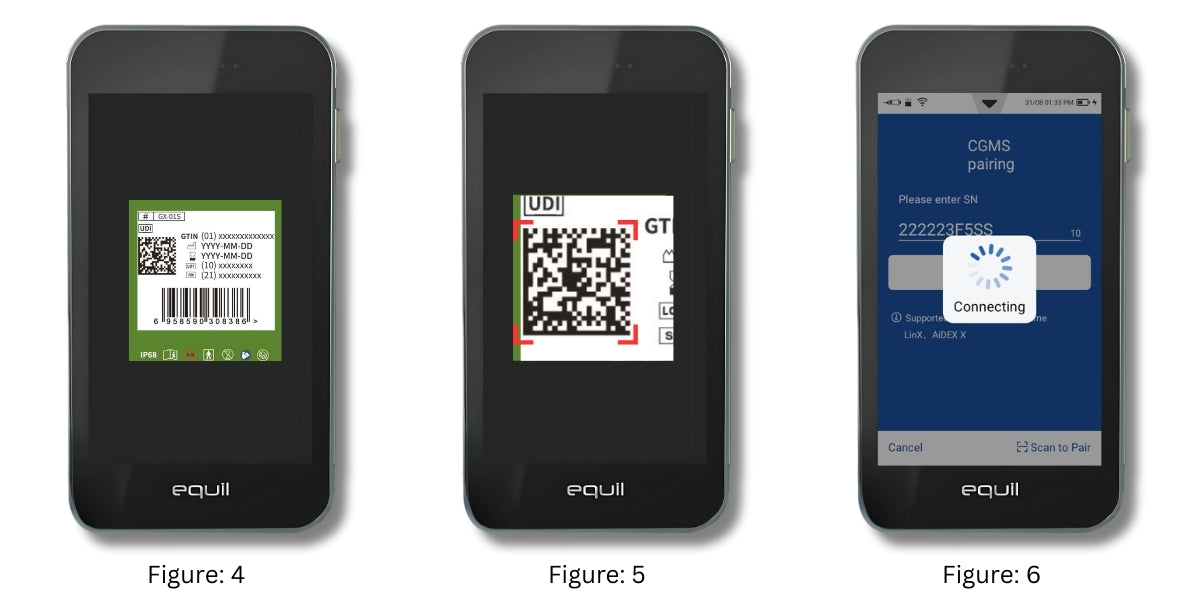

Hold your device so the camera points at the sensor package (Figure 4). Focus on the QR code as illustrated in Figure 5. The system will automatically capture the sensor serial number and start the pairing process.

After the QR code is successfully scanned, the pairing will proceed automatically. Follow the on-screen instructions to confirm completion (Figure 6).

How to remove a sensor from the PDA—normally when it’s within Bluetooth range, or forcibly if it’s lost or disposed.

Unpairing a CGM Sensor (Standard & Force Delete)

Standard Unpairing Process

Open Menu > CGM (Fig. 7). The sensor page shows unpairing options and your sensor’s serial number beside Unpair (Fig. 8). Tap Unpair to finish. The sensor must be within Bluetooth range of the PDA.

Force Unpairing (When Sensor Is Lost or Disposed)

If the sensor is lost or disposed, open Menu > CGM (Fig. 7). On that screen, swipe left to reveal the red Force Delete button (Fig. 8), then select it to forcibly unpair the sensor from the PDA.

Keep growing with focused Equil® Academy lessons—pick what you need, when you need it.
